Tubular Scaffold System

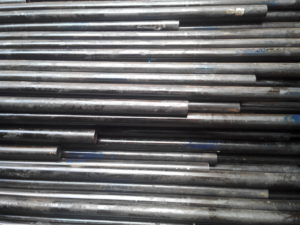

SCAFFOLDING PIPES

SCAFFOLDING PIPES

    • USE:

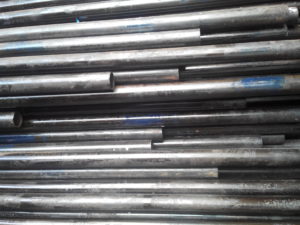

      Scaffolding M S Black / Galvanized Pipe 1 1/2” (40 NB) Light,Heavy,Medium Class IS: 1239/1161 , Length : 6 Mtr , Weight : 19-24 Kg With T.C

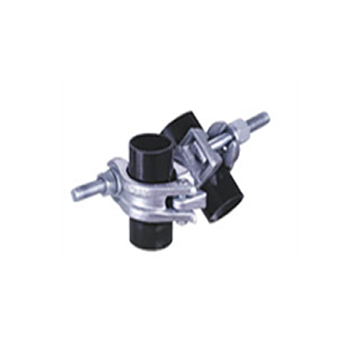

SWIVEL CLAMPS- DROP FORGED

SWIVEL CLAMPS- DROP FORGED

  • • Joins scaffold tube having outside diameter of 48.3mm at any angle. • Each half of the Coupler is interconnected with a swivel pin. • Typically used for connecting bracing members. Also used for tension splicing of scaffold tubes. • Tightening nuts suit standard Scaffold Spanner (23mm A/F). • Replaceable ‘T’ bolts, nuts and washers. • Robust design made from drop forged steel for durability and reliability. • Hot dip galvanised finish for corrosion resistance. • Complies with the requirements of EN-74

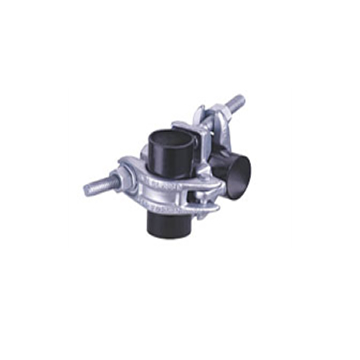

FIX CLAMPS – DROP FORGED

FIX CLAMPS – DROP FORGED

  • • Joins two scaffold tubes having outside diameter of 48.3mm at right angles. • Tightening nuts suit standard Scaffold Spanner (23mm A/F). • Replaceable ‘T’ bolts, nuts and washers. • Robust design made from drop forged steel for durability and reliability. • Hot dip galvanised finish for corrosion resistance. • Complies with the requirements of EN-74
SWIVEL CLAMPS- SHEET METAL

SWIVEL CLAMPS- SHEET METAL

  • • Joins scaffold tube having outside diameter of 48.3mm at any angle. • Each half of the Coupler is interconnected with a swivel pin. • Typically used for connecting bracing members. Also used for tension splicing of scaffold tubes. • Tightening nuts suit standard Scaffold Spanner(23mm A/F). • Replaceable ‘I’ bolts, nuts and washers. • Robust design made from drop forged steel for durability and reliability. • Electroplated finish for corrosion resistance.
FIX / DOUBLE CLAMP-SHEET METAL

FIX / DOUBLE CLAMP-SHEET METAL

  • • Joins two scaffold tubes having outside diameter of 48.3mm at right angles. • Tightening nuts suit standard Scaffold Spanner (23mm A/F). • Replaceable ‘I’ bolts, nuts and washers.• Robust design made from drop forged steel for durability and liability. • Electroplated finish for corrosion resistance.

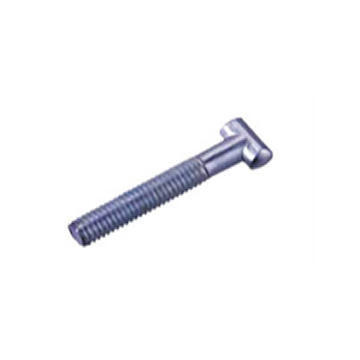

Tee Bole

Tee Bole

    • M S T Bolts for Forged Clamp with Nut & Washer.
    • Size : M12 x 90 mm
EYE BOLT

EYE BOLT

    • M S I Bolts for Forged Clamp with Nut & Washer.
    • Size : M12 x 90 mm

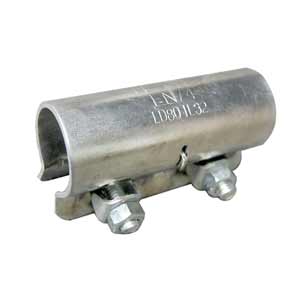

SLEEVE CLAMPS

SLEEVE CLAMPS

  • EXTERNAL SLEEVE CLAMPS- SHEET METAL • Joins 48 O.D. scaffold tubes end to end externally.• Used for end to end joining of scaffold tube standards. • Locates on outside diameter of scaffold tube members. • Tightening bolt suits standard Scaffold Spanner. • Made from high quality pressed steel. • Hot dip galvanised finish.• Under compression loading this Coupler is capable of taking the full capacity of the scaffold tube. • Not to be used for tension loads. Under tension loading, it is necessary to splice the joint with another scaffold tube and Swivel Couplers (tension load check required). • Can be used for end to end joining of tube ledgers. BS 1139 (Metal Scaffolding) • This Coupler must only be used to join scaffold tube with the same external diameter. • Typical scaffold tube sizes are: – 48.3mm O.D. x 40.3mm I.D. (4.00mm wall thickness tube).

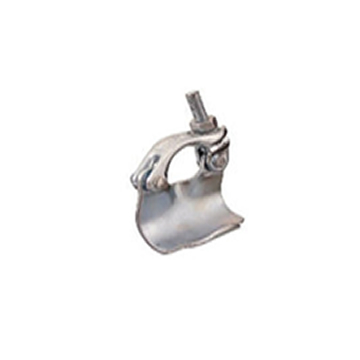

PUT LOG CLAMP

PUT LOG CLAMP

  • • Joins 48 O.D. scaffold tubes at right angles.• Used for positioning putlog tubes onto ledger tubes. • Tightening nut suits standard Scaffold Spanner(23mm A/F)• Replaceable ‘T’ bolt, nut and washer. • Pressed steel body and drop forged steel cap.• Hot dip galvanised fi nish for corrosion resistance. • Complies with the requirements of BS 1139• Typically used for securing guardrails and midrails to standards at right angles. Other uses can distort the Coupler so that tube retention is not effective and WLL does not apply.• Not to be used for connecting ledger tube. Only use Right Angle Couplers for such purpose.

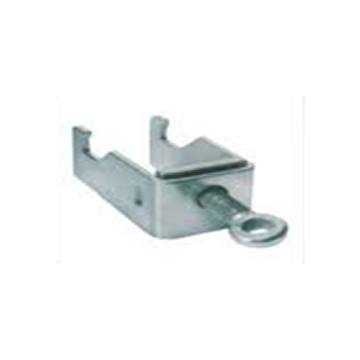

C CLAMP

C CLAMP

    • USE:
      Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed sit amet posuere mauris. Donec vitae hendrerit erat, nec hendrerit eros. Nam convallis erat id turpis venenatis finibus. Nam ullamcorper bibendum tincidunt. Aenean turpis arcu, convallis sed facilisis aliquet, aliquet sit amet odio. Nulla varius, tortor et tempor tristique, lorem neque porta nisl, et feugiat lorem enim eget neque. Etiam mattis augue eu odio aliquam accumsan.

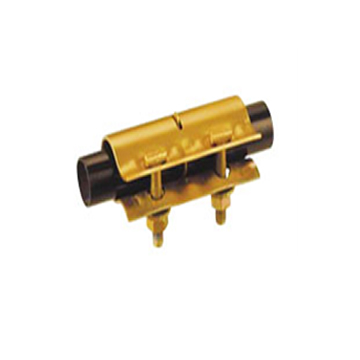

SLEEVE CLAMPS-SHEET METAL

SLEEVE CLAMPS-SHEET METAL

    • USE:
      Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed sit amet posuere mauris. Donec vitae hendrerit erat, nec hendrerit eros. Nam convallis erat id turpis venenatis finibus. Nam ullamcorper bibendum tincidunt. Aenean turpis arcu, convallis sed facilisis aliquet, aliquet sit amet odio. Nulla varius, tortor et tempor tristique, lorem neque porta nisl, et feugiat lorem enim eget neque. Etiam mattis augue eu odio aliquam accumsan.

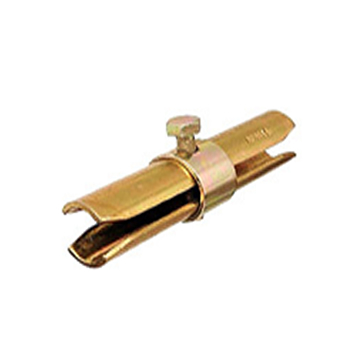

EXPANDABLE JOINT PIN

EXPANDABLE JOINT PIN

  • • Joins 48 O.D. scaffold tube standards end to end internally. • Fits inside scaffold tubes. • Expands to fi t internal diameter of scaffold tube when bolt tightened. • Tightening bolt suits standard Scaffold Spanner (23mm A/F). • Made from forged steel. • Hot dip galvanised finish. • Under compression loading this Joint Pin is capable of taking the full capacity of the scaffold tube. • Not to be used for tension loads. Under tensionloading, it is necessary to splice the joint with another scaffold tube and Swivel Couplers (tension load check required).• This Joint Pin must only be used to join scaffold tube with the same internal diameter, ie, the same wall thickness. • Typical scaffold tube sizes are: – 48.3mm O.D. x 40.3mm I.D. (4.00mm wall thickness tube).

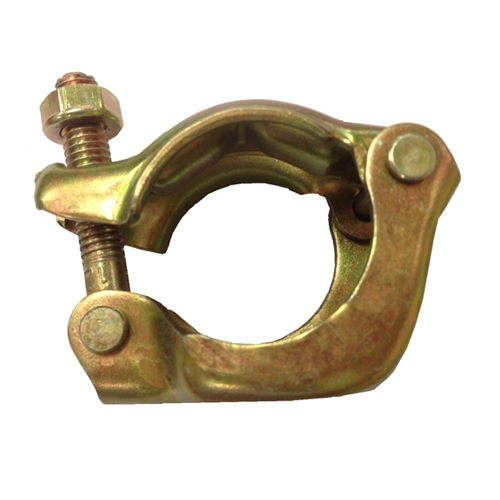

SINGLE CLAMP

SINGLE CLAMP

    • USE:
      Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed sit amet posuere mauris. Donec vitae hendrerit erat, nec hendrerit eros. Nam convallis erat id turpis venenatis finibus. Nam ullamcorper bibendum tincidunt. Aenean turpis arcu, convallis sed facilisis aliquet, aliquet sit amet odio. Nulla varius, tortor et tempor tristique, lorem neque porta nisl, et feugiat lorem enim eget neque. Etiam mattis augue eu odio aliquam accumsan.

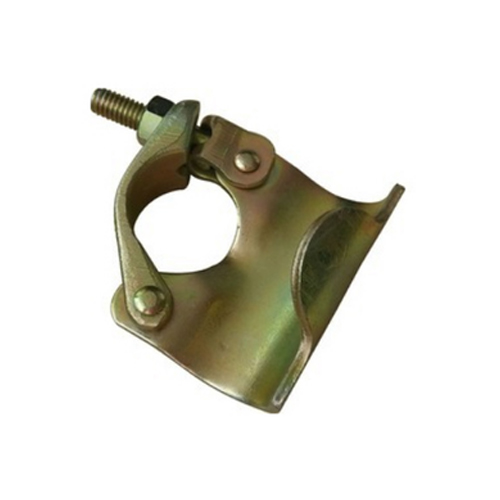

PUT LOG COUPLER-SHEET METAL

PUT LOG COUPLER-SHEET METAL

    • USE:
      Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed sit amet posuere mauris. Donec vitae hendrerit erat, nec hendrerit eros. Nam convallis erat id turpis venenatis finibus. Nam ullamcorper bibendum tincidunt. Aenean turpis arcu, convallis sed facilisis aliquet, aliquet sit amet odio. Nulla varius, tortor et tempor tristique, lorem neque porta nisl, et feugiat lorem enim eget neque. Etiam mattis augue eu odio aliquam accumsan.

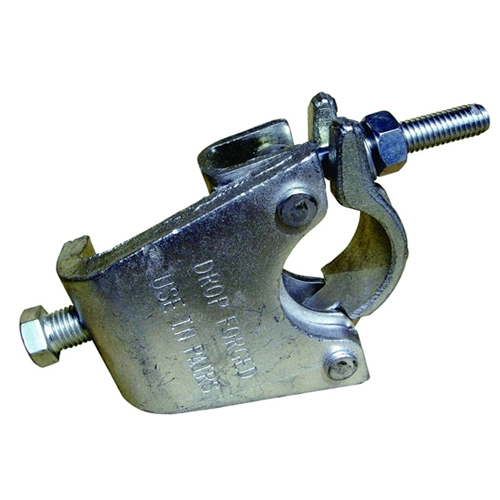

GRIDER CLAMP-SHEET METAL

GRIDER CLAMP-SHEET METAL

  • Joins 48 O.D. scaffold tube to Tapered or Parallel Flange steel beams at 90°. Suitable for girder fl ange thickness up to 44mm

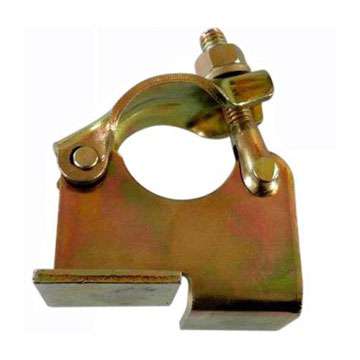

BOARD RETAINING COUPLERS- SHEET METAL [ELECTROPLATED]

BOARD RETAINING COUPLERS- SHEET METAL [ELECTROPLATED]

  • Board Clamp Retains timber scaffold planks to 48 O.D. putlog/ transom tubes. Suitable for plank thickness range of 35 to 38mm
